H 15 SX
Scissor work platform suitable for use in difficult terrain. Working height 15m, basket capacity 500kg. More…
Description
Scissor work platform suitable for use in difficult terrain. Working height 15m, basket capacity 500kg.
Diesel aerial work platform of scissor design. Maximum working height 15m, basket capacity 500kg, 4×4 chassis and 4 hydraulic supports.

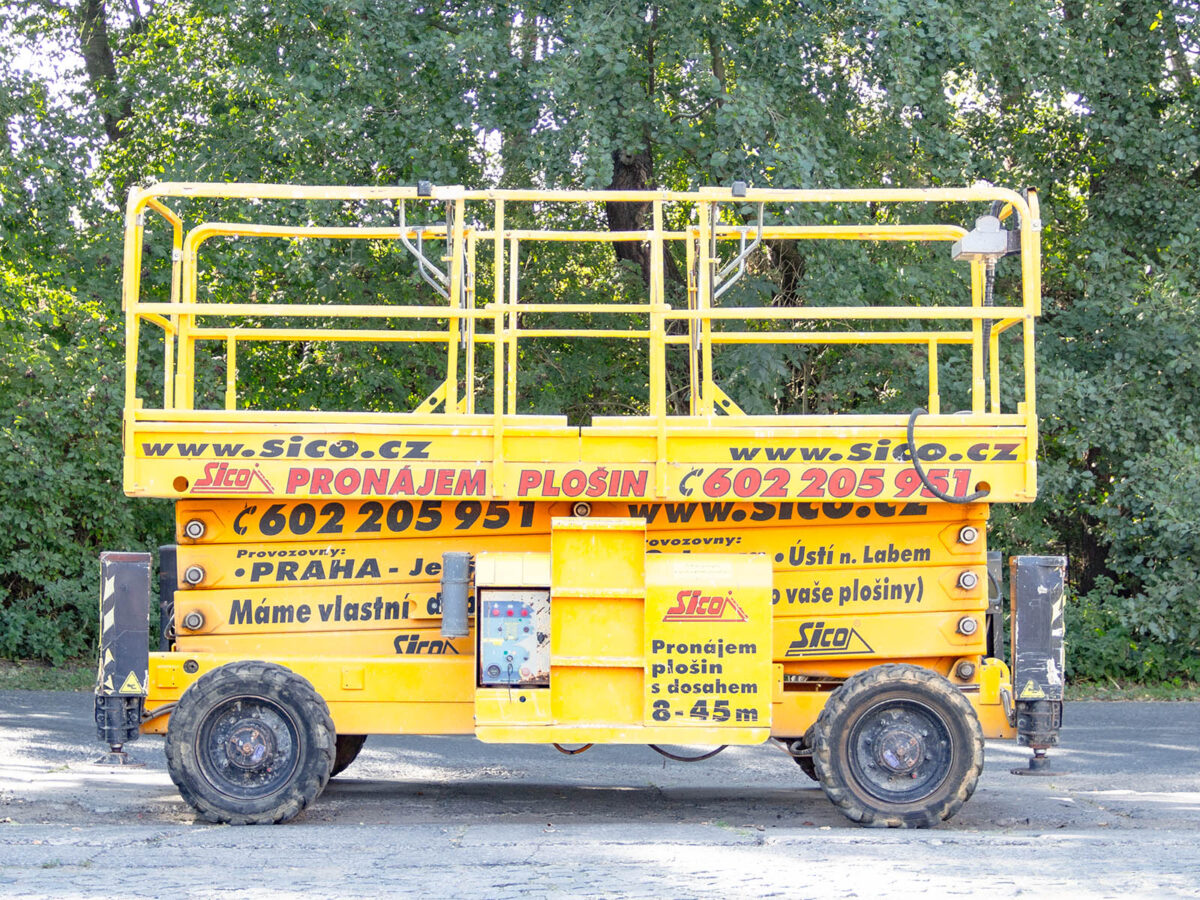

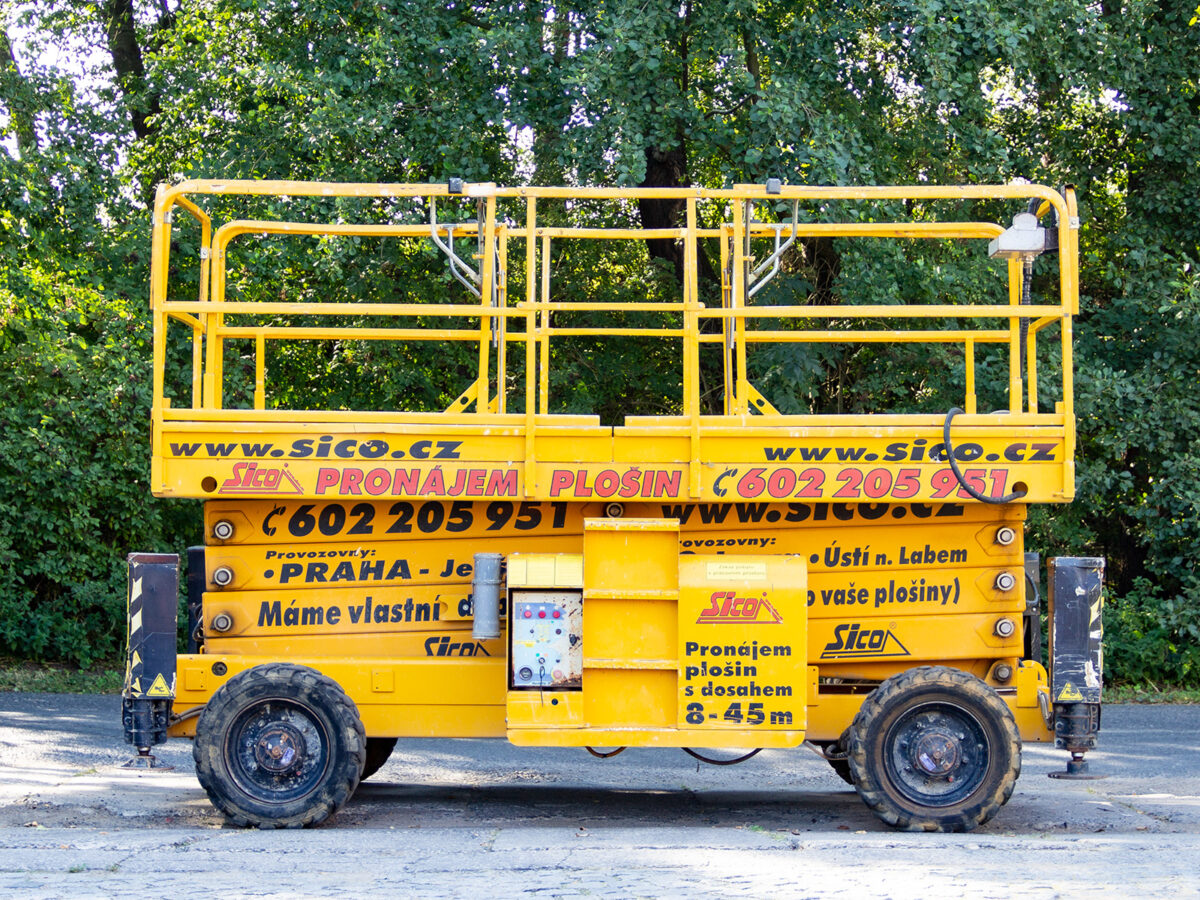

The Haulotte H 15 SX scissor off-road lift is equipped with rough-tread tyres, two axle drive and a hydraulic differential. A ground clearance of 35 centimetres allows even the most significant obstacles to be overcome. The 4 hydraulic supports ensure a safe positioning. The working basket can hold 500 kilograms and can be enlarged to a dimension of up to 6 metres by 1,8 metres. The machine has an external turning radius of 4,96 metres, the fine proportional control ensures perfect manoeuvrability. The platform can be lifted by crane and is also equipped with towing hooks.
The Haulotte H 15 SX scissor lift meets strict safety regulations and international standards.
Video
Diagram
Specification
| Manufacturer | Haulotte |
| Working height | 15 m |
| Horizontal outreach | 1 m |
| Max. load on platform | 500 kg |
| Platform dimensions (extension) | 4 (6) x 1,8 m |
| Total weight | 6 340 kg |
| Space required on bridge | terrain |
| Lenght | 4,12 m |
| Transit width | 2,25 m |
| Transit height | 2,75 (1,9) m |
| Maximum wind speed | 12,5 m/s |
| Propulsion | diesel |
| Dimensions at installation | 4,12 x 2,25 m |
| Leveling supports | 4x |
