HA 32 RTJ
The HA 32 RTJ aerial work platform reaches a working height of up to 31,8 meters. It is structurally adapted for assembly and other high-altitude work in hard-to-reach terrain. More…
Description

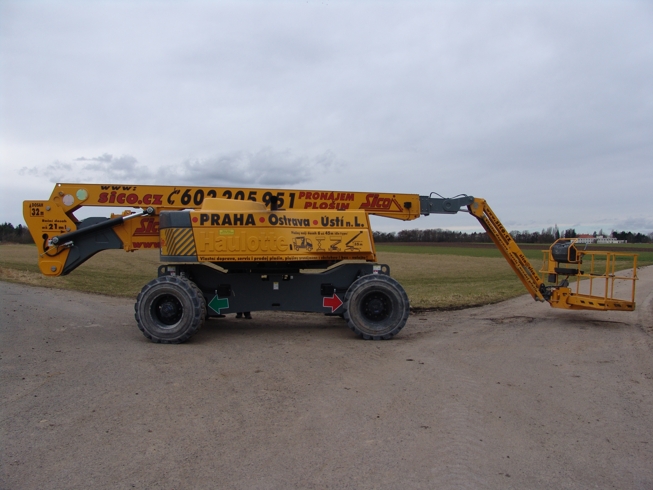

The HAULOTTE HA 32 RTJ articulated-telescopic work platform is a self-propelled lifting device that reaches hard-to-reach places by means of a system of three hydraulically operated arms and a rotating work basket attached to the so-called JIB arm. The platform is also suitable for work in difficult terrain.
The aerial work platform also provides access to areas above the ground, which are difficult for many platforms to reach. The rotating body, on which the three arms and the work basket are located, can be rotated 360 degrees. The basket can be rotated up to 180 degrees. The maximum working range is 31.8 meters in height and 21,6 meters to the side.
The aerial work platform is powered by a powerful diesel engine. Stability and accessibility to difficult terrain is ensured by its robust construction, large wheels and 45% incline. Electromagnetic brakes quickly stabilize the platform after driving and allow it to be used immediately. Thanks to the stability, it is possible to move the platform to another place with the arms extended.
The HA 32 RTJ aerial work platform meets strict safety regulations and international standards.
Diagram
Specification
Manufacturer | Haulotte |
Working height | 31,8 m |
Horizontal outreach | 21,6 m |
Max. load on platform | 250 kg |
Platform dimensions (extension) | 2,44 m x 0,91 m |
Total weight | 20140 kg |
Space required on bridge | terrain |
Lenght | 11,7 m |
Transit width | 2,53 m (3,3 m) |
Transit height | 2,8 m |
Maximum working inclination | |
Maximum wind speed | 12,5 m/s |
Propulsion | diesel |
Dimensions at installation | 11,7 m x 3,3 m |
