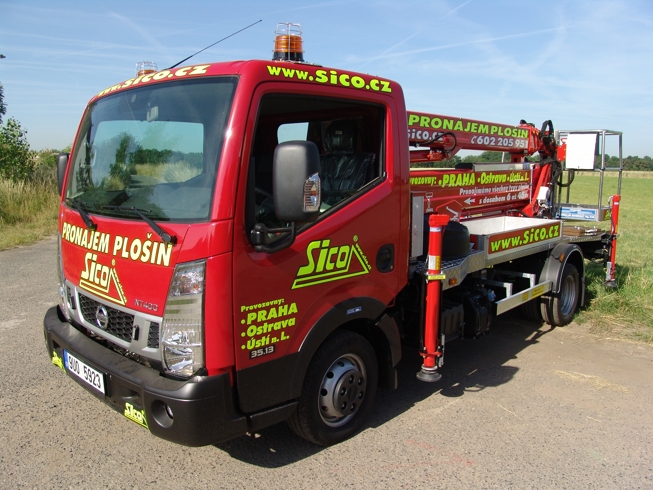

NISSAN CABSTAR DT25
The NISSAN CABSTAR DT25 platform is your lifesaver for high-altitude work in the city and light terrain thanks to the minimal dimensions of its chassis. More…
Description
The NISSAN CABSTAR DT25 platform is your lifesaver for high-altitude work in the city and light terrain thanks to the minimal dimensions of its chassis.
The DT25 aerial work platform on the NISSAN CABSTAR car chassis is suitable for assembly, construction, reconstruction and other high-altitude work that requires mobility and frequent relocation of the platforms.
The platform consists of a swivel on the chassis, a telescopic boom with an articulated telescope and a work basket. The maximum reach of the platform is 25 meters in height and 12 meters to the side.
The truck platform meets strict safety regulations and international standards. The stability of the platform is ensured by the subframe of the vehicle with four retractable supports that absorb the load of the platform.
Diagram
Specification
| Manufacturer | Cela |
| Max. lowering depth | 5 m |
| Max. load on platform | 230 kg |
| Working height | 25 m |
| Horizontal outreach | 12 m |
| Dimensions at installation | 6,7 m x 4,17 m |
| Platform dimensions (extension) | 1,4 m x 0,7 m |
| Space required on bridge | 4,17 m |
| Total weight | 3340 kg |
| Leveling supports | 4x |
| Lenght | 6,7 m |
| Transit width | 2,15 m |
| Transit height | 2,25 m |
| Space required on bridge | light terrain |
| Maximum working inclination | |
| Maximum wind speed | 12,5 m/s |
| Propulsion | auto-motor/230V |
| Operating temperature | 0°C+ |
